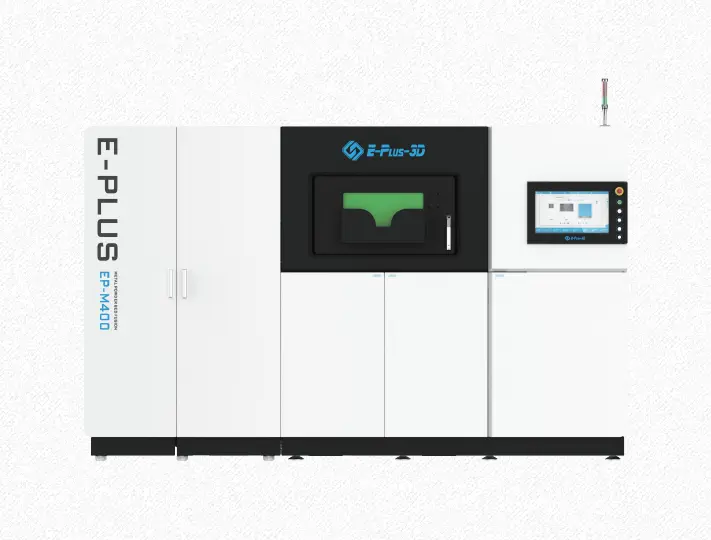

EP-M400 Metal 3D Printer

Eplus3D Introduces EP-M400 to the successful line of MPBF™ 3D printers. EP-M400 is a marvelous metal printer that makes the production of reliable and high quality large metallic parts viable on industrial scale without requiring any tools.

It is optional for single laser, dual laser, triple laser and quad laser.

Consult an Expert
Request A Quote

High Quality

  • Printed parts' density > 99.9%, deviation in parts' mechanical properties < 5%.
  • The optimized gas flow design ensures efficient removal of smoke and splashes as well as achievement of uniform and consistent full size printing.
  • Overlapping deviation ≤ ±0.1 mm.
  • The overall mechanical properties of the printed part remain the same when compared to printing results with other laser machines.

High Efficiency

  • Build volume (X x Y x Z): 400 x 400 x 450 mm (height incl. build plate), build chamber volume > 70 L.
  • Printing with increased layer thickness can be realized, increasing the production capacity.
  • With in-house developed processing software (EPHatch), optimized scanning strategies can be achieved with reduced print duration.

Reliable

  • Excellent core optic components from world-class supplier and mature process control parameter algorithm provides highest part quality.
  • High quality uniform part printing due to excellent control over building environment and components.
  • Tightly sealed build chamber maintains oxygen concentration ≤100 ppm and a stable pressure during printing.
  • Sustained monitoring of powder left in feeder and ability to add powder without stopping the machine ensures uninterrupted part printing.
  • Double protection of chamber door is attained due to dual gas releasing ports on top of printing chamber.

Cost-effective & Easy Operation

  • Three-stage filtration, which can use blow back function to remove the fume, equipped with permanent filter element.
  • Highly user friendly software interface and one-click printing technology makes printing super simplified.
  • Comparability with different types of recoater lips such as ceramic, PU, alloy steel, etc.
  • Traceable print records after every print and real-time display of readings for various sensors.

Open System

  • Open parameters for editing laser power, scan speed, scan direction, up and down facing surfaces etc.
  • Open system ensures freedom to choose among wide range of metal powders available in market.
  • Process software can be integrated with Siemens NX software to realize effective planning of design, simulation and printing path planning, within one software and highly improving the production efficiency.
  • Process software supports SLC and CLI formats.

Device Specifications

DeviceSpecifications
Machine Model EP-M400
Build volume400 x 400 x 450 mm (15.75 x 15.75 x 17.72 in)
Optical SystemFiber Laser 1 / 2 / 3 / 4 x 500 W (700 W and 1000 W are optional)
Spot Size70 - 120 μm
Max Scan Speed8 m/s
Layer Thickness 20 - 120 μm
Theoretical PrintspeedUp to 190 cm³/h
MaterialTitanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply 380 V, 50 / 60 Hz, 12.5 ~ 18 kW
Gas SupplyAr / N2
Oxygen Content≤100 ppm
Dimension (W x D x H)3925 x 1690 x 2780 mm
Weight5900 kg
SoftwareEPControl, EPHatch
Input Data FormatSTL or other Convertible File
